Loader Parts in South Carolina - A popular type of industrial equipment used in a variety of applications is the loader. These machines are responsible for loading and transporting items such as gravel, raw materials, snow, asphalt, rock, sand, grain, woodchips, demolition debris and more. These machines facilitate a variety of transportation such as moving items into feed-hoppers, rail cars, conveyor belts and dump trucks. There are a variety of different loaders designed for numerous applications including scoop, skid-steer, front loader, shovel, payloader, front-end loader, skip loader, wheel-loader, and bucket loader.
Description
This machine is part of the tractor family features a wide bucket attached to the front of the machine that is connected to the endo of two booms or arms. Some models have wheels and others rely on tracks. This versatile piece of industrial equipment can scoop up items such as sand, gravel or dirt and transport it to another place without having to push it across the ground. Loaders move stockpiled items from ground level and transfer it to a dump truck or open trench. Removable or permanently mounted attachments make up the loader assembly. The bucket can be interchanged with other tools. Forks can be mounted to lift shipping containers or pallets. A loader can utilize a hydraulically operated clamshell bucket to facilitate scraper and light dozer jobs. Large bales of hay or straw can be transported via a loader with a bale grappler attachment.
The term front loader is given to sizeable loaders that feature a front bucket. Smaller loader tractor models can utilize a backhoe attachment and are referred to as loader backhoes, backhoe loaders or JCBs. These loader models are commonly used for loading trucks, digging, clearing debris and laying pipe. Due to being unable to dig lower than its’ wheel level, the loader is not as efficient as a backhoe or an excavator. The capacity of loader buckets ranges from 0.5 to 36 cubic meters. Between a backhoe loader and front loader, the front loader model has more bucket capacity available.
Most loaders consist of wheels as opposed to tracks, although, track models are available. Track models are popular in construction sites and areas where rubber wheels may be prone to damage from sharp items. Wheels offer better speed and mobility and do not damage paved roads the way tracks do, but tracks offer more traction. Loaders are used to transport items and digging tools around construction site locations.
It is common to see front loaders removing snow from sidewalks, parking lots and other narrow locations that cannot handle heavy equipment. They can be used as snowplows with the proper attachment or can utilize a snow-basket or bucket to load snow into a dump truck or snow plow compartment.
Specialized “high-tip” buckets are used to transport lightweight items including woodchips, pea gravel and peat, ensuring easier emptying while the bucket is extended and full height. These machines have enjoyed greater popularity over the past twenty years in urban engineering applications and earthmoving works. Different duties can be handled by a variety loader model sizes.
There are not automotive steering features on large loaders compared to standard tractors with backhoes or a front bucket. This model of loader utilizes articulated steering with a hydraulically actuated pivot point that is located between the front and rear axles. This design enables the front axle to be solid and the greater weight to be carried by the machine. There is more maneuverability offered with articulated steering models. The front wheels rotate along the same axis together with the attachment to allow the operator to steer the load in an arc after the machine is in position. There is higher risk of the machine turning over towards the wide side after the heavy load is raised and the machine is turned to the side.

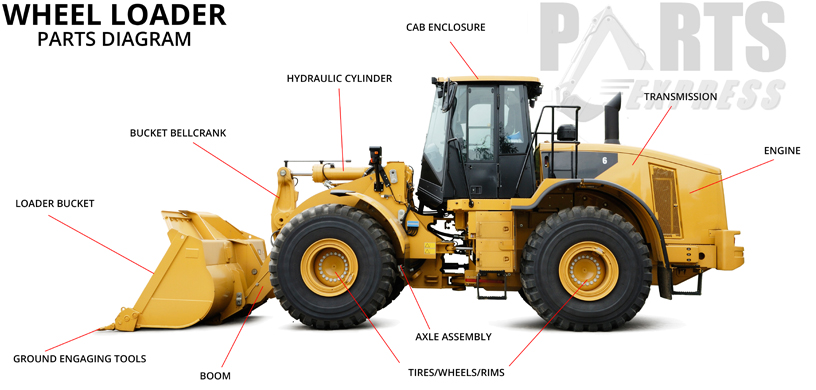

Major component items include the engine that is typically diesel, hydraulic items such as pumps, motors and valves along with transmission components including wheels, tracks, axles, motors, gearbox, pumps etc.
The loader engine controls the hydraulics and the transmission which bring movement to the front attachments such as forks, sweepers, buckets and the like. Each loader model has particular lifting capabilities and can conquer manure, sand, gravel or other items.
Wheel Loaders
The initial wheel loader was created from a tractor with a rear-wheel drive. Current wheel loaders feature front and rear wheels of the same dimensions and are articulated.
Armored Wheel Loaders
The armored CAT 966 wheel loaders are common in military applications and used to complete construction missions and combat engineering feats. This equipment is commonly used for building fortification, constructing bases and disassembling roadblocks. The machine is protected against rocks, stones, Molotov cocktails and gunfire with the addition of armor plating. Certain elite police squads have relied on wheel loaders for military use to open routes and lead the way for police. Wheel loaders that utilize remote controls can be used by military and police departments.
Tractor Front Loaders
Tractors with 50 to 200 horsepower may use a loader addition. This kind of tractor loader was built to facilitate numerous farming activities. These tractor loaders can complete a variety of jobs and are more economical than telehandler equipment. Hydraulic grabs and spikes are some of the common attachments to increase efficiency with bale handling and silage. Fork attachments are ideal for pallet applications and buckets are used frequently for agricultural jobs.
Compact Front End Loaders
FELs or front-end loaders are popular additions to farm tractors and compact utility tractors or CUTs. Compact models are small and offer 18 to 50 HP, making them ideal for landscaping and groundskeeping. There are semi-curved, curved arm and regular dogleg models available for different applications.
Compact utility tractors with front-end loaders are capable of doing a variety of jobs and come with numerous attachments. For increased digging abilities, a tooth bar may be outfitted to the front edge of the machine. A QA or quick attach system or quick coupler enables buckets and attachments including pallet forks and bale spears to be easily removed and attached.
The LHD or load-haul-dump machine is a front end loader that is useful in compact mining conditions. It can use numerous buckets and operate with diesel engines or electric motors.
Skid Loaders
A skid-steer loader, skid loader or skidsteer refers to a small engine powered loader featuring a rigid frame. This machine has lift arms that are capable of attaching to many tools. Mechanically synchronizing on each side, these machines generally have four wheels. Each set of right and left wheels are capable of being driven independently. Usually, the wheels keep a straight, fixed body alignment without separate steering options.
Differential steering accomplishes turning maneuvers. The right and left wheel pairs operate at different speeds, causing the machine to turn by dragging or skidding fixed-orientation wheels along the ground. The strong wheel bearings and rigid frame prevent torsional forces that occur from the dragging motion. It is easy for soft ground and fragile road surfaces to become destroyed by the immense ground friction caused by tracked vehicles and skid steers.
Specially designed wheels convert low ground friction. Certain skid-steer models can accomplish pirouette turning and are capable of zero-radius turns to allow maximum maneuverability. This is valuable for applications needing an agile and compact loader. There are some varieties called multi-terrain loaders that utilize tracks as opposed to wheels.
The lift arms in skid loaders are found beside the operator and there are pivot points located behind the shoulder’s of the operator. Being so close to moving boom caused operator safety concerns with the first models compared to conventional front loader models, particularly during entry and exit of the machine. Modern models nowadays feature enclosed cabs and extra features to ensure operator safety. Comparable to other front loader models, these machines can carry items by pushing them across the ground or carrying materials in the bucket for easy truck or trailer depositing.
History of Tracked Loaders
A tracked loader features a chassis with a loader for loading and digging material. There have been three major design evolutions for this equipment, each time resulting in greater efficiency and versatility. Being able to complete a large variety of tasks, this equipment is a popular add on to many existing fleets.
The first tracked loaders were created from track tractors; however, they offered less ability to dig into harder ground surfaces, making them similar to bulldozers during that time. Tracked loaders were commonly utilized for transporting stockpiled items into loading trucks and rail cars.
Hydraulic integration changed everything from increasing overall power to providing power to the loader linkages. The hydraulic system allows the machine to facilitate down-pressure to the bucket, creating much better digging capacity within tighter environments. The initial designs placed the engine weight at the front area of the tracks other heavy loader items. This design ended up causing extreme wear and tear problems throughout the undercarriage and the front idler wheels. The hydrostatic drive system became the second major design innovation to improve tracked loaders.
Swingloaders
A swingloader consists of a rigid frame and swinging boom. The boom can travel 180 degrees or farther. This equipment is used mostly in railway applications for laying rail. There are many different attachments such as magnets, buckets and forks that can be used. Smaller machines are used for agricultural applications. Swingloaders are popular in a variety of places where space is limited. These machines are commonly used in applications where space is compromised. This loader is able to deposit and lift on all sides.
